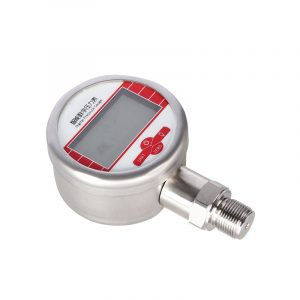

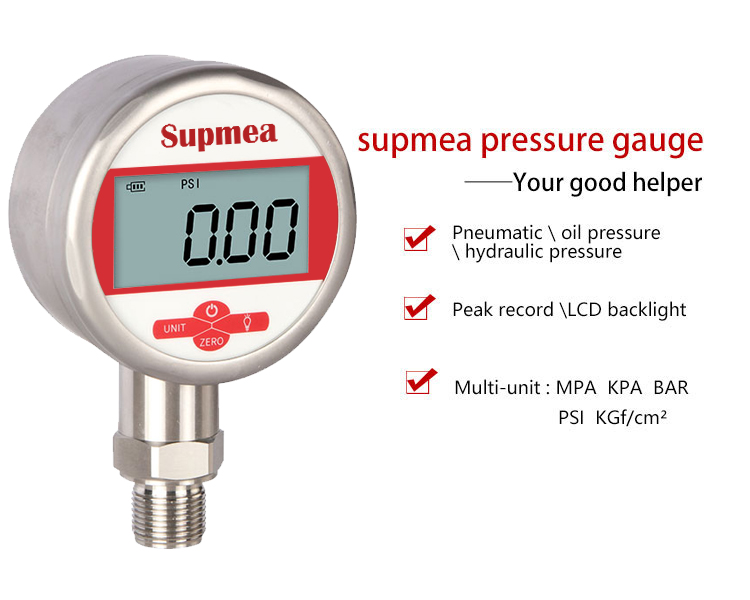

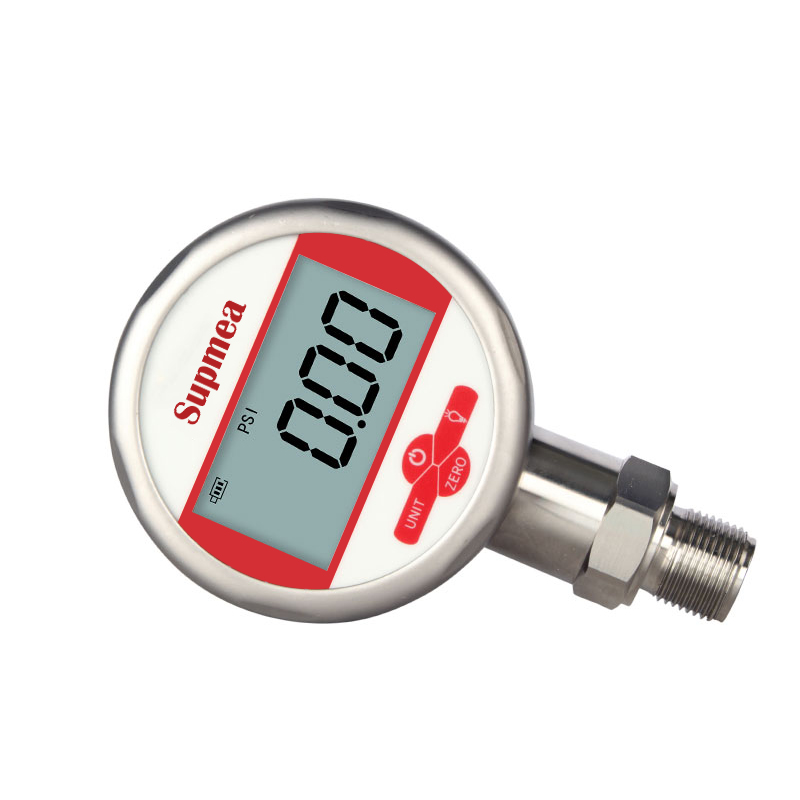

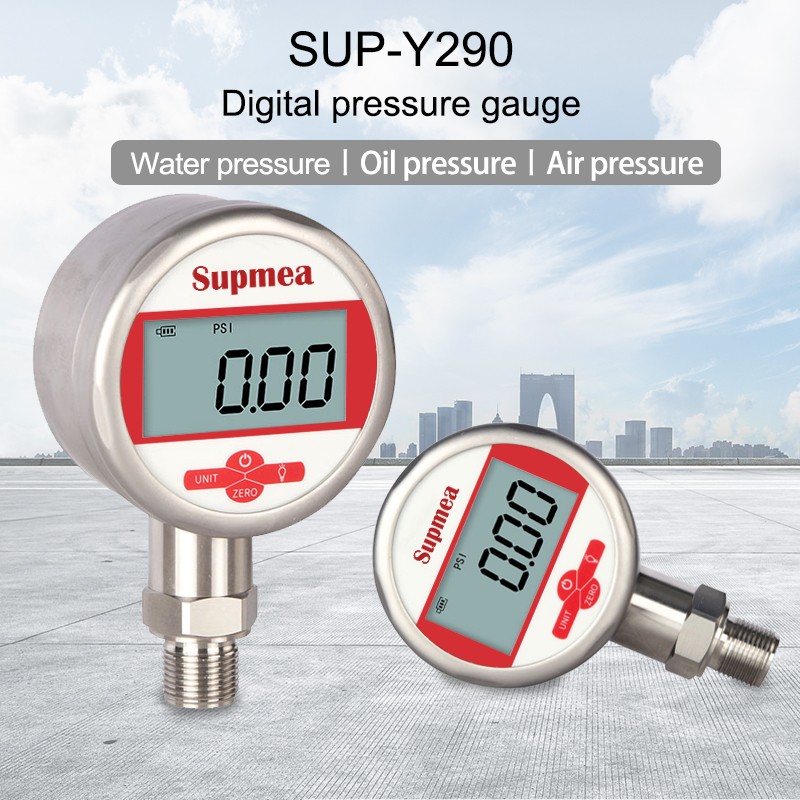

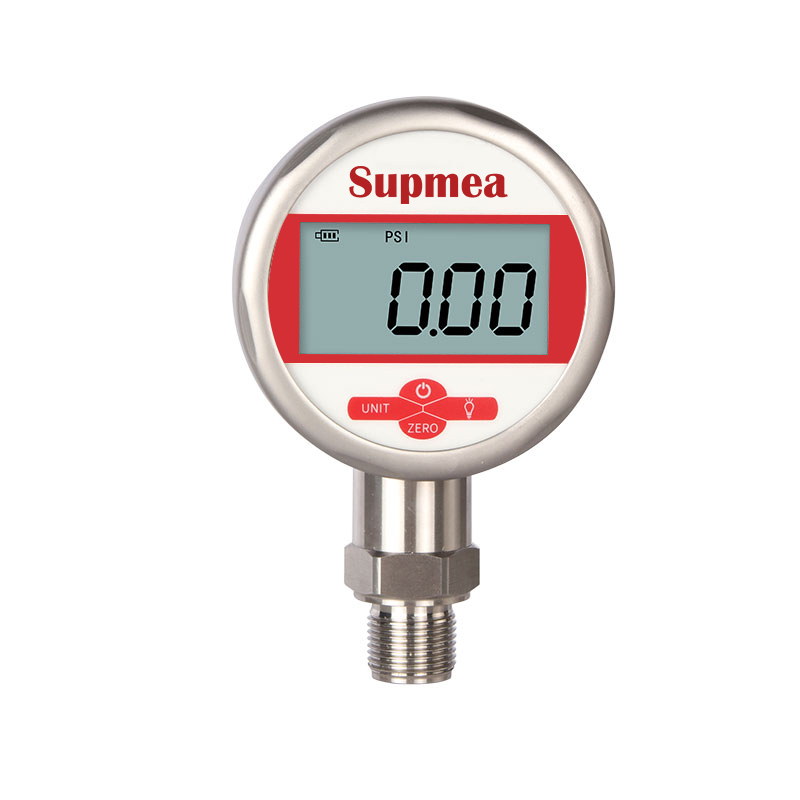

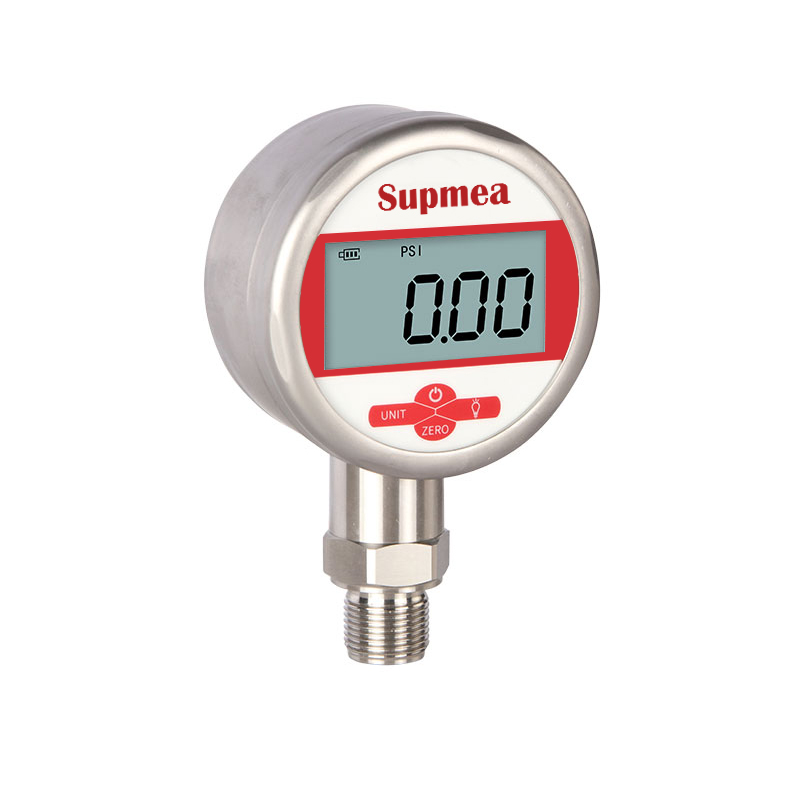

SUP-Y290 Pressure gauge battery power supply backlight
Category: Digital Pressure gauge
Applications: SUP-Y290 pressure gauge is with battery power supply, high accuracy up 0.5% FS, battery power supply, backlight etc. The pressure unit can be changed wthin Mpa, PSI, Kg.F/cm aquared, bar, Kpa. Widely used in the industry application.
SUP-Y290 pressure gauge is with battery power supply, high accuracy up 0.5% FS, battery power supply, backlight etc. The pressure unit can be changed wthin Mpa, PSI, Kg.F/cm aquared, bar, Kpa. Widely used in the industry application.
| Product | Pressure gauge |
| Model | SUP-Y290 |
| Measure range | -0.1~0 to 0 ~ 40MPa |
| Indication resolution | 0.4%FS (standard), 0.2%FS |
| Dimensions | 100mm / 80mm |
| Ambient temperature | -10 ~ 70 ℃ |
| Tread type | M20*1.5 or customized |
| Pressure type | Gauge pressure; Absolute pressure |
| Measure medium | Liquid; Gas; Oil etc |
| Pressure overload | 150%FS |
| Power supply | Battery powered |
