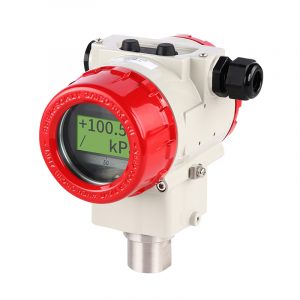

SUP-P3000 Pressure transmitter
Category: Pressure transmitter
Applications: SUP-3000 Pressure transmitter uses the unique and proven silicon sensor with state-of-the-art digital processing to provide exceptional performance in terms of accuracy, long term stability and functionalities. -0.1MPa~40MPa full detection range.
SUP-P3000 Pressure transmitter
Category: Pressure transmitter
Applications: SUP-3000 Pressure transmitter uses the unique and proven silicon sensor with state-of-the-art digital processing to provide exceptional performance in terms of accuracy, long term stability and functionalities. -0.1MPa~40MPa full detection range.
| Product | Pressure transmitter |
| Model | SUP-3000 |
| Measure range | -0.1MPa~40MPa |
| Indication resolution | 0.075% |
| Ambient temperature | -10 ~ 85 ℃ |
| Output signal | 4-20ma analog output / with HART communication |
| Diaphragm material | 316L stainless steel Hastelloy C (custom) |
| Process connection | 316L stainless steel |
| Fill oil | Silicone oil |
| Power supply | 24VDC |
