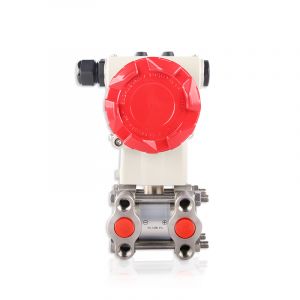

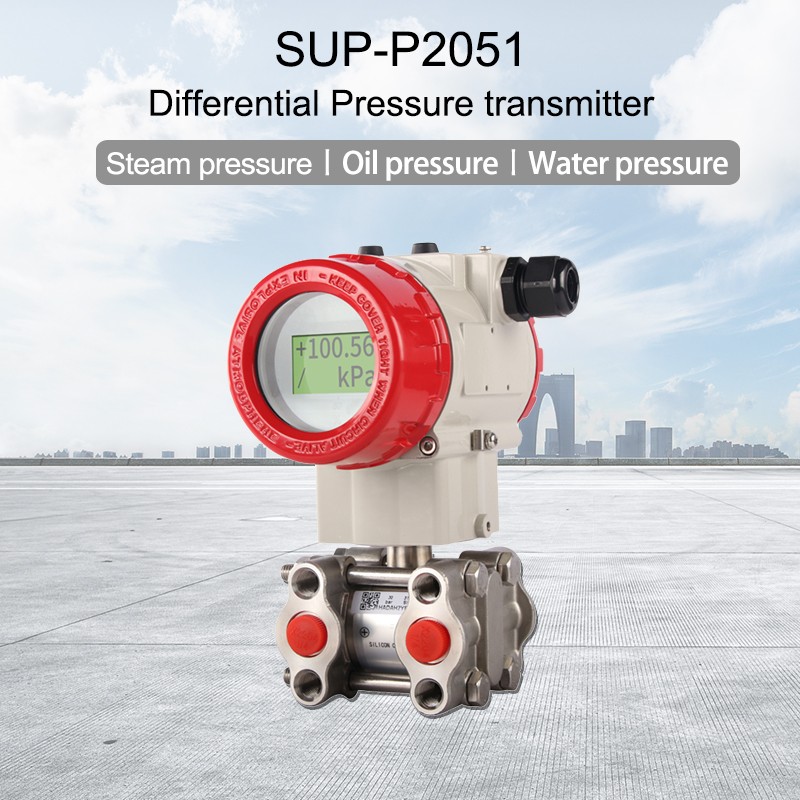

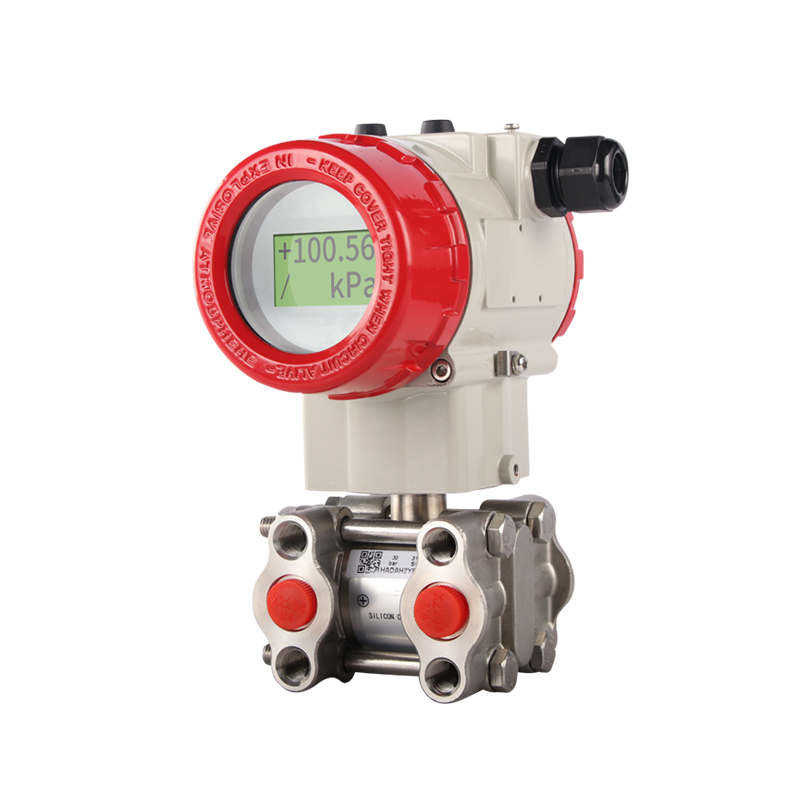

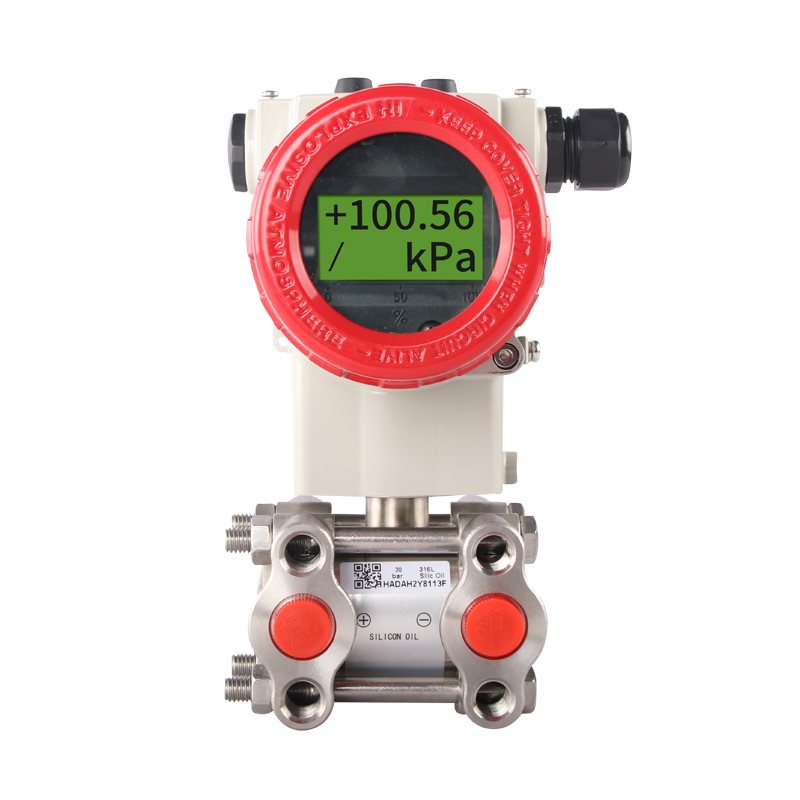

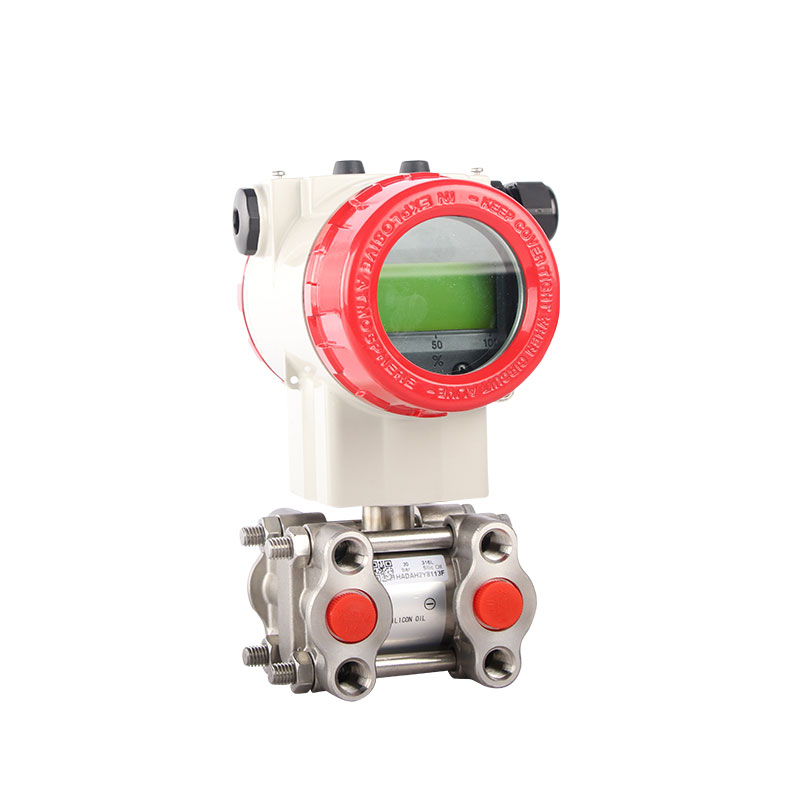

SUP-2051 Differential Pressure transmitter
Category: Differential pressure transmitter
Views: 4569
Views: 4569
Applications: SUP-2051 Differential Pressure transmitter Using high-performance single crystal silicon differential pressure technology accurately measures differential pressure, liquid level or flow rate. and transmits a proportional 4-20 mA output signal. 1kPa to 3MPa full detection range. High-performance static pressure test design, static pressure error ± 0.05% / 10MPa
SUP-2051 Differential Pressure transmitter Using high-performance single crystal silicon differential pressure technology accurately measures differential pressure, liquid level or flow rate. and transmits a proportional 4-20 mA output signal. 1kPa to 3MPa full detection range. High-performance static pressure test design, static pressure error ± 0.05% / 10MPa
Features
- High-performance, high-precision.Using high-performance single crystal silicon differential pressure technology,
platinum-level accuracy, measurement accuracy up to one-thousandth - High-brightness liquid crystal display. Measured values clearly show that data observation more convenient
- Wide range detection. 1kPa to 3MPa full detection range
- High-performance static pressure test design. High-performance static pressure test, static pressure error ± 0.05% / 10MPa
| Product | Differential Pressure transmitter |
| Model | SUP-2051 |
| Measure range | 0 ~ 1kpa to 0 ~ 3MPa |
| Indication resolution | 0.075% |
| Ambient temperature | -10 ~ 85 ℃ |
| Output signal | 4-20ma analog output / with HART communication |
| Shell protection | IP67 |
| Diaphragm material | Stainless steel 316L, Hastelloy C, support other custom |
| Product shell | Aluminum alloy, the appearance of epoxy coating |
| Weight | 3.3Kg |
