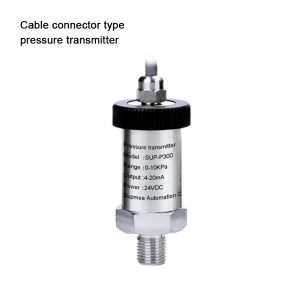

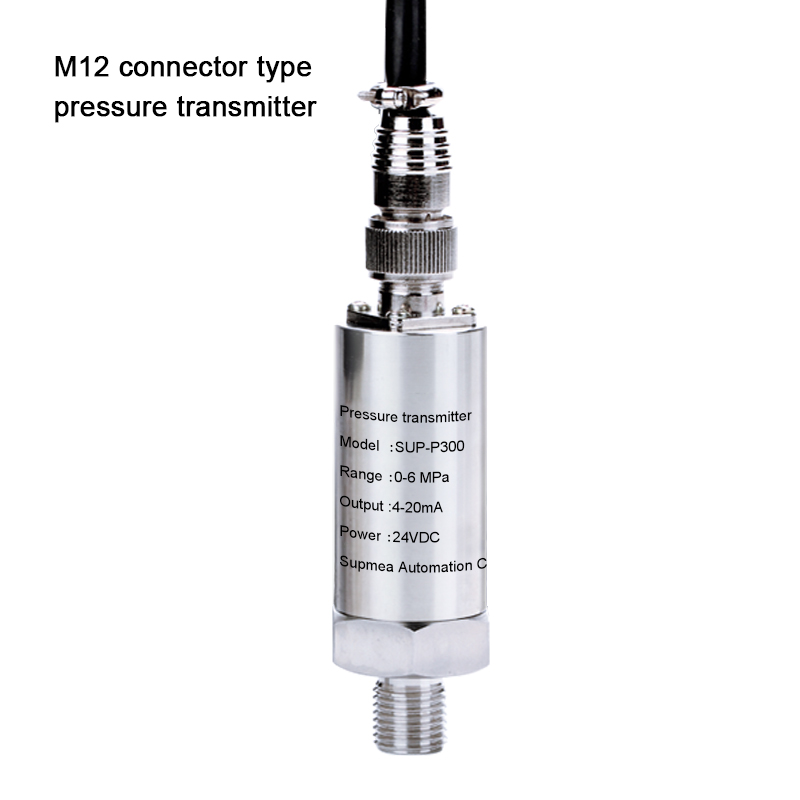

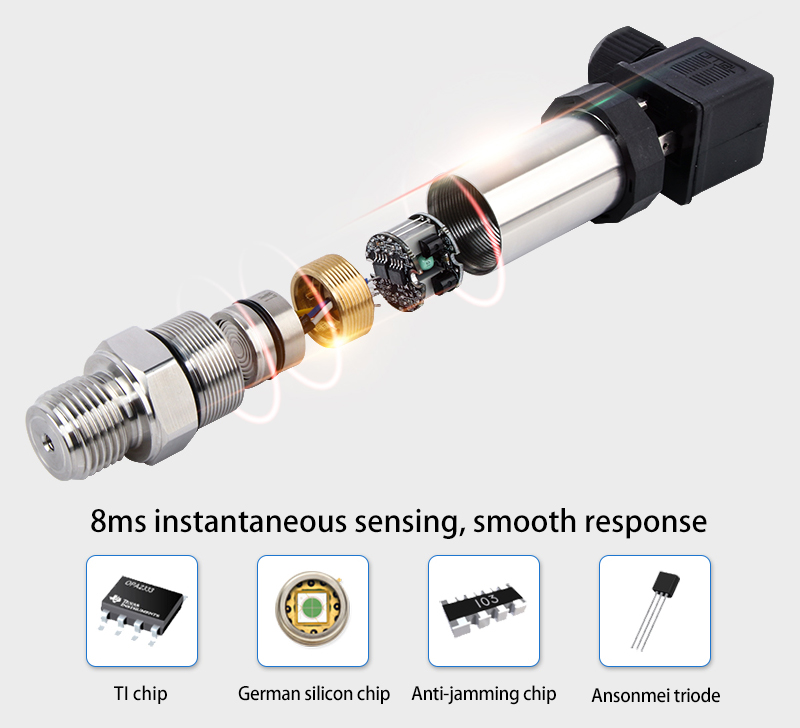

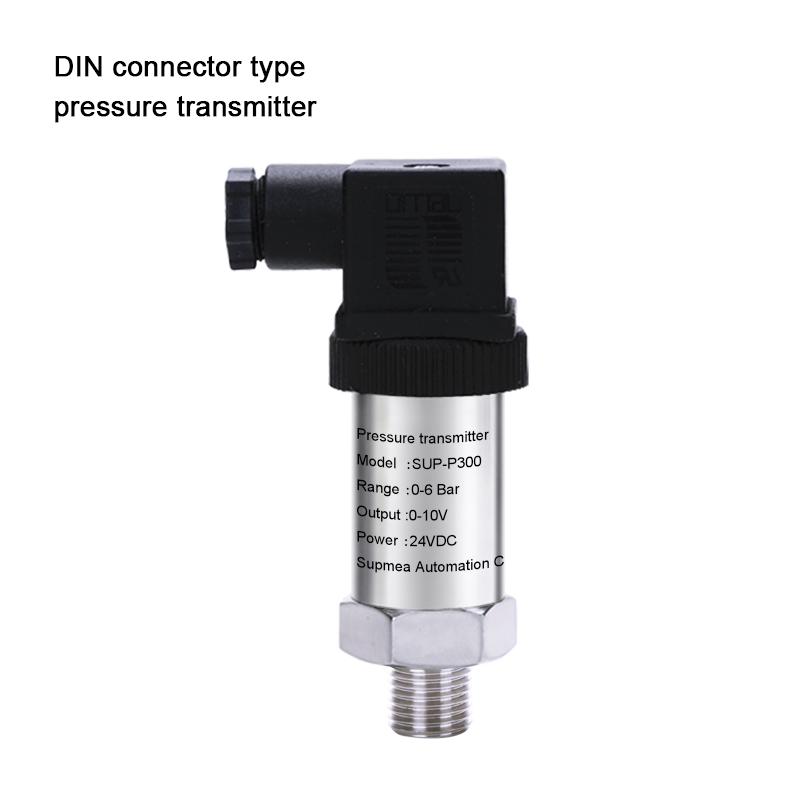

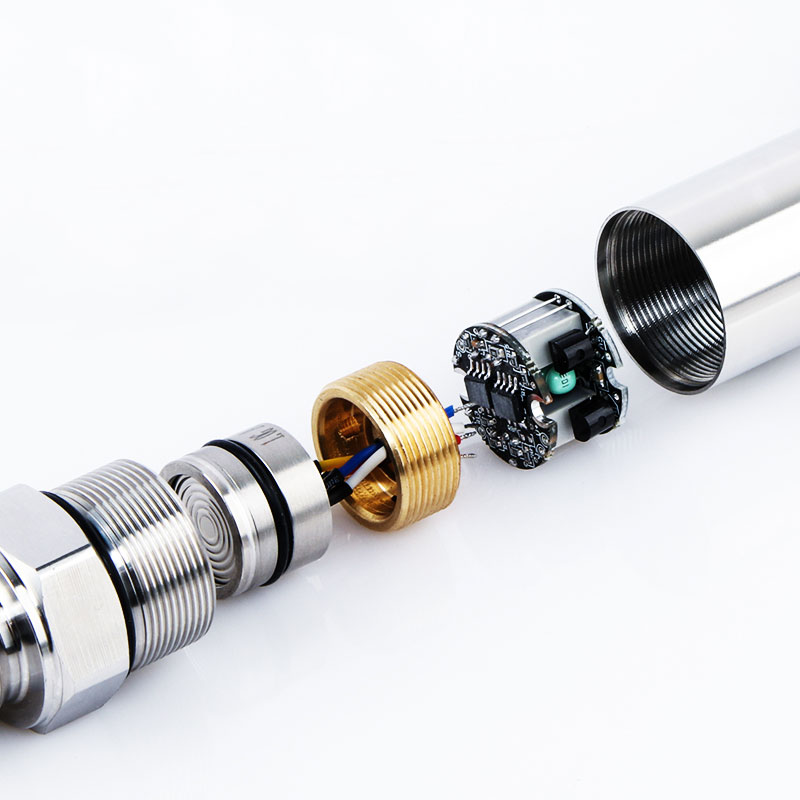

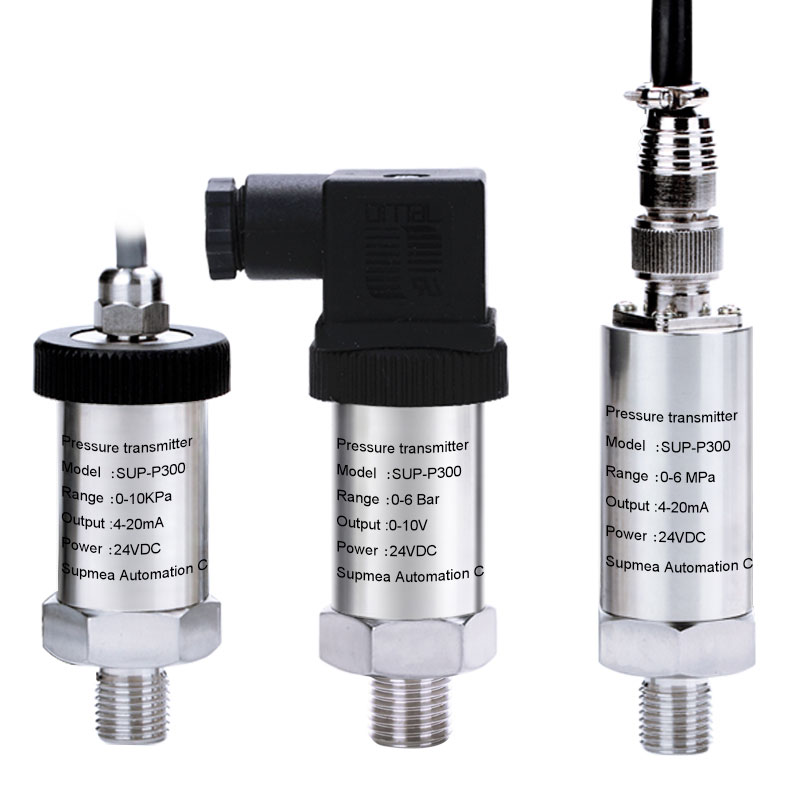

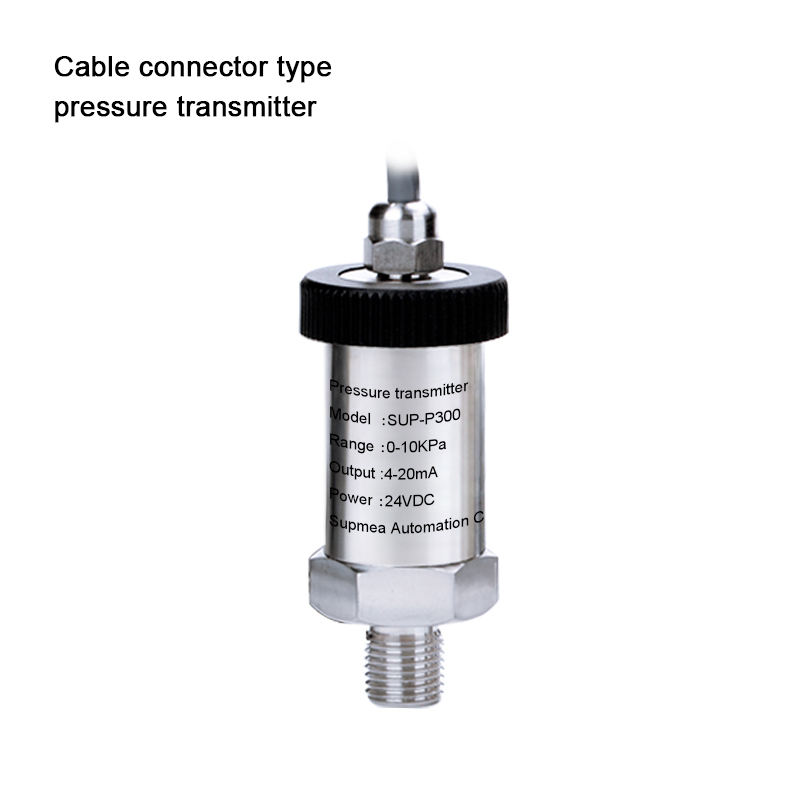

SUP-P300 Pressure transmitter with compact size for universal use
Category: Pressure transmitter
Applications: SUP-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc.
SUP-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc.
| Product | Pressure transmitter |
| Model | SUP-P300 |
| Measure range | -0.1MPa~60MPa |
| Accuracy | 0.5% F.S;0.3%F.S optional |
| Output signal | 4-20mA; 1-5V; 0-10V; 0-5V |
| Compensation temperature | -10 ~ 70 ℃ |
| Ambient temperature | -20 ~ 85 ℃ |
| Medium temperature | -20 ~ 85 ℃ |
| Storage temperature | -40 ~ 125 ℃ |
| Pressure overload | 150%FS |
| Power supply | 24VDC(12 ~ 36V) |
