SUP-R9600 Paperless Recorder up to 18 channels unviersal input
Category: Paperless recorder
Applications: SUP-R9600 Paperless Recorder is with outstanding specifications features like high performance and powerful extented functions. With high visibility Color LCD display, it is easy to read data from the meter. Universal input, high speed of sampling speed and arruracy make it reliable for industry or reaserach applicaiton
SUP-R9600 Paperless Recorder is with outstanding specifications features like high performance and powerful extented functions. With high visibility Color LCD display, it is easy to read data from the meter. Universal input, high speed of sampling speed and arruracy make it reliable for industry or reaserach applicaiton
Basic Functions

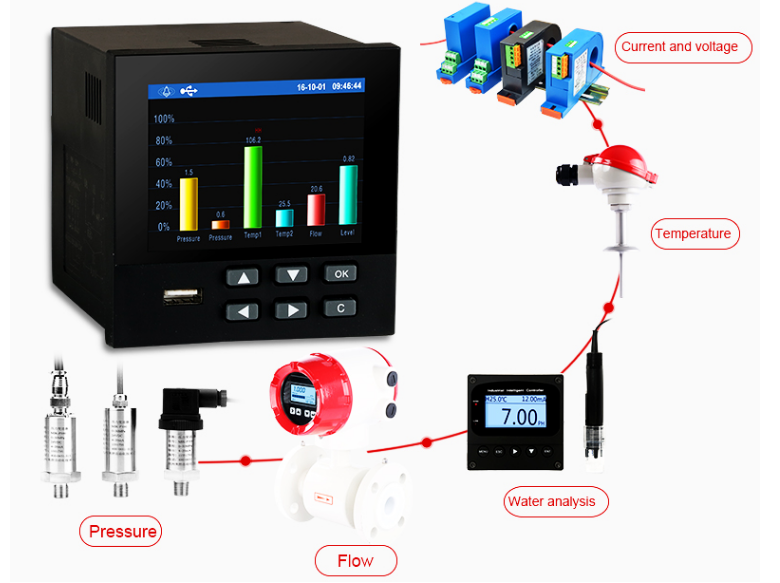

• Up to 18 channels of universal input
• UP to 4 Alarm Output Relays
• With 150mA Power distribution Output
• Communication type: RS485, Modbus RTU
• With a USB data transfer interface
Display & Operation

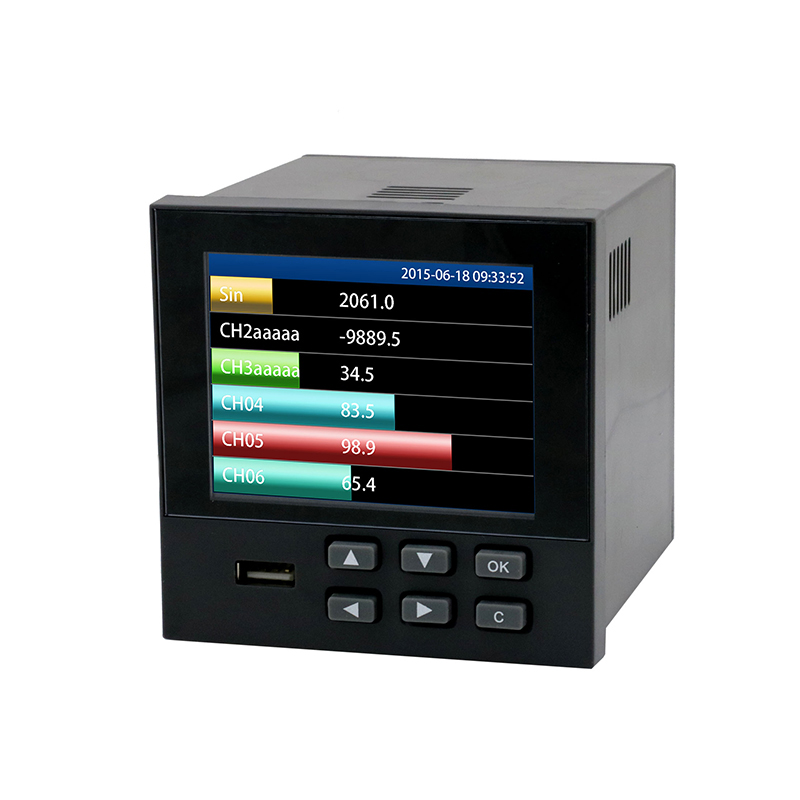

• Multiple display Function ：choose the display your way
• Use date and time calendar search functions to Review historical data .

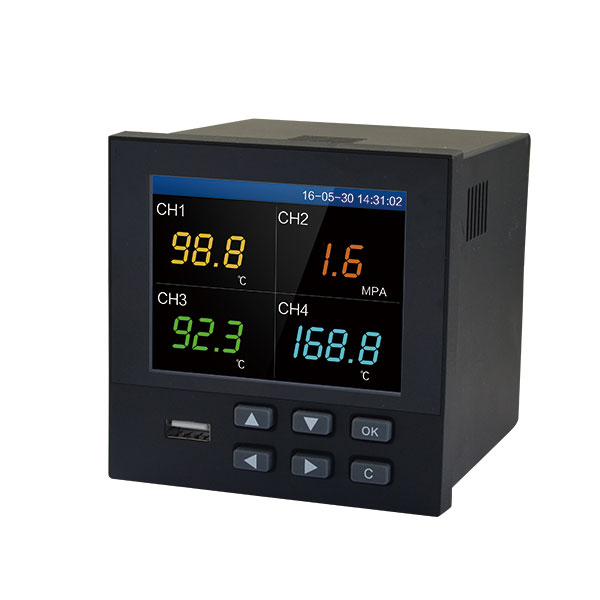

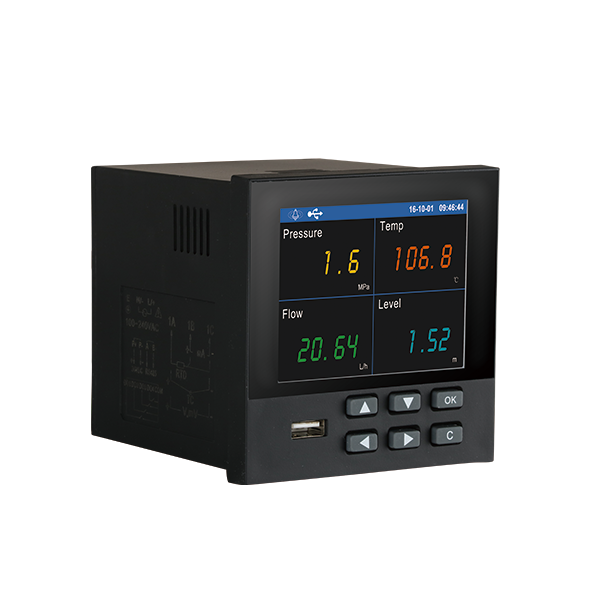

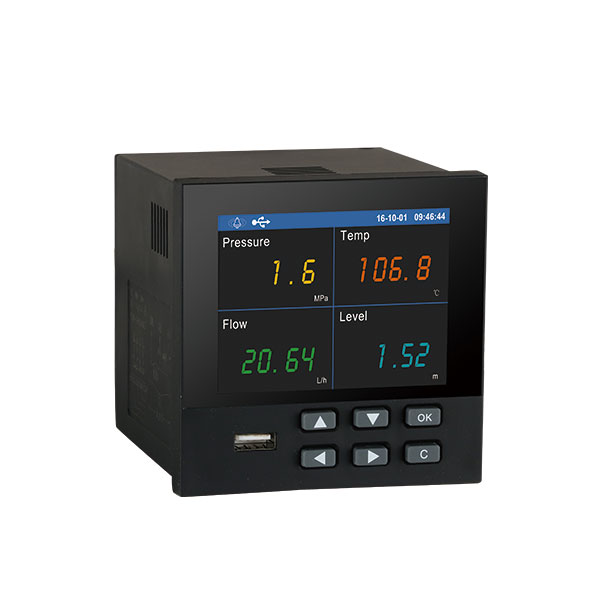

• 3.5 inch TFT color LCD (320 x 240pixels)
Reliability and Security
• Dust- and splash-proof front panel
• Power Fail Safeguard:All the data stored in Flash memory, make sure that all the historical data
and configuration parameters will not lost when power fail. Real time clock power supply by lithium batteries.
| Product | Paperless recorder |
| Model | SUP-R9600 |
| Display | 3.5 inch TFT true color LCD screen |
| Shape dimension | Shape dimension：96mm×96mm×96mm Opening Size：92mm×92mm |
| Thickness of mounted panel | 1.5mm~6.0mm |
| Weight | 0.37kg |
| Power supply | (176~264)VAC，47~63Hz |
| Internal storage | 48M bytes Flash |
| External storage | U disk support (standard USB2.0 communication interface) |
| The maximum power consumption | 20VA |
| Relative humidity | (10~85)%RH（No condensation） |
| Operating temperature | (0~50)℃ |
| Transport and storage conditions | Temperature (-20~60)℃，Relative humidity (5~95)%RH（No condensation） Altitude：<2000m，Except for special specifications |
