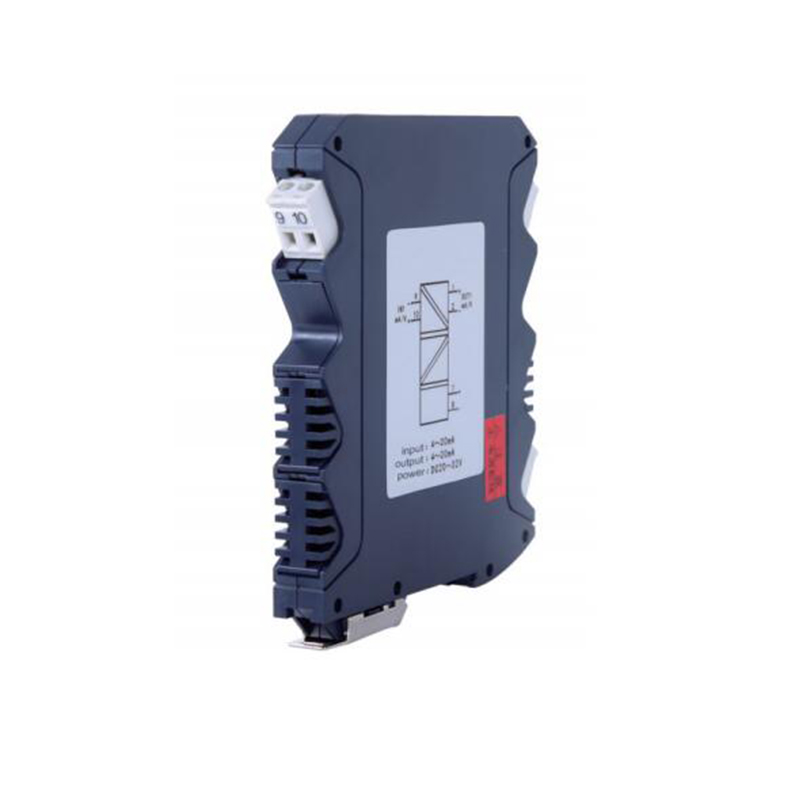

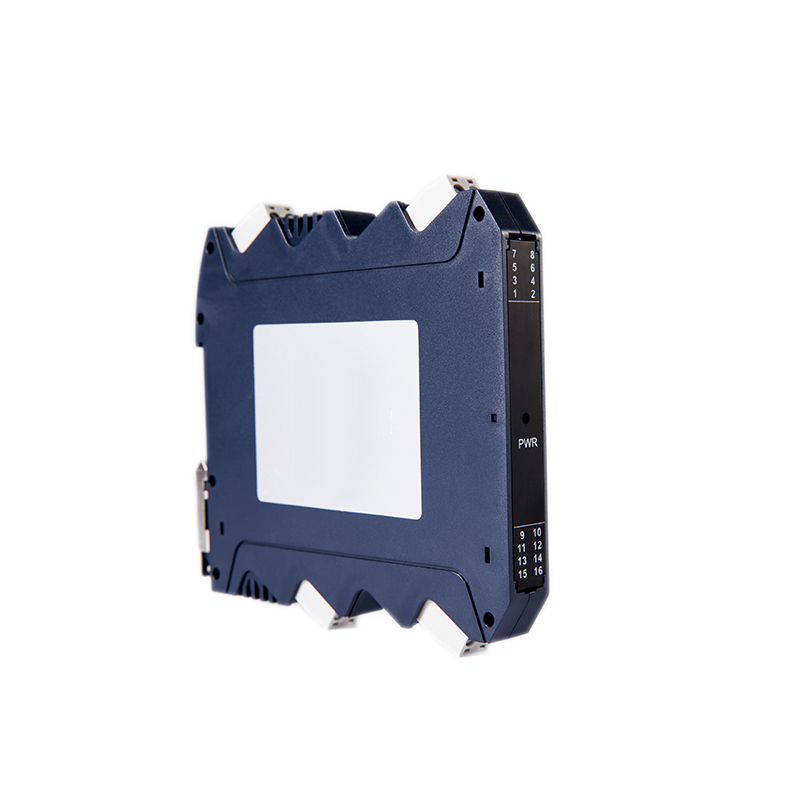

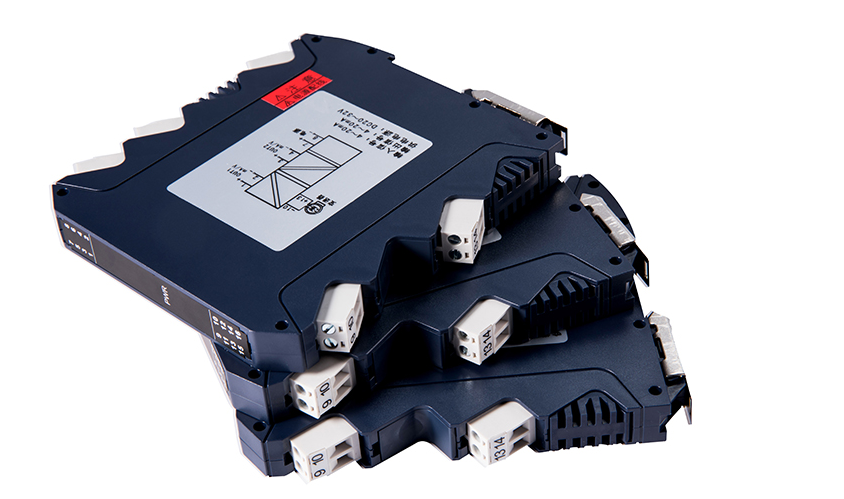

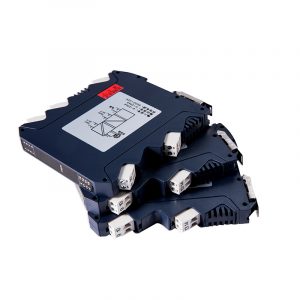

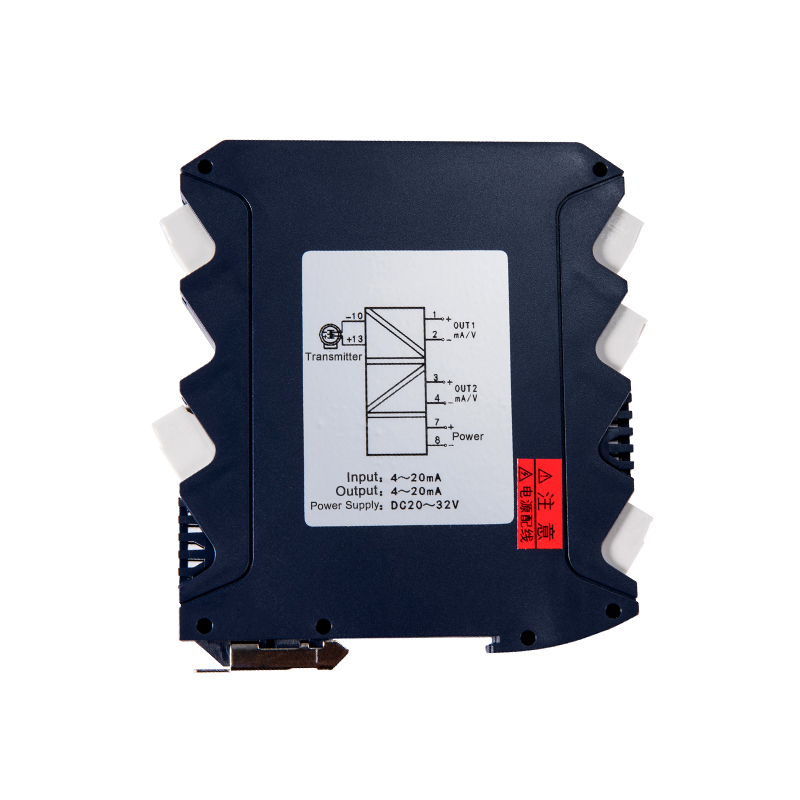

SUP-503H Intelligent Signal isolator for Voltage/Current
Category: Signal isolator
Applications: SUP-502H Signal isolator utilized in automated control systems is a kind of instrument for transformation & distribution, isolation, transmission, operation of a variety of industrial signal, it can also be used with all kinds of industrial sensor to retrieve parameters of signals, isolation, transformation and transmission for remote monitoring local data collection.
Applications: SUP-502H Signal isolator utilized in automated control systems is a kind of instrument for transformation & distribution, isolation, transmission, operation of a variety of industrial signal, it can also be used with all kinds of industrial sensor to retrieve parameters of signals, isolation, transformation and transmission for remote monitoring local data collection.
Features
- Single-channel/Dual-channel
- TC, RTD, mV signals input
- Analog signals output
- Excellent isolation between power, inputs and outputs
- Transmission accuracy 0.2%±1 (20°C)
- Modularization, compacted and low-power- consumption
- Full intelligent, digital and programmable
- Hot-swap-able terminals, easy for installation and maintenance
- Standard 35 mm DIN for installation
| Input signal | 4-20mA、0-20mA、0-5V、1-5V、0-10V |
| Input resistance | Impedance ≤50Ω, voltage Impedance ≥250 KΩ |
| Maximum input current / voltage | ≤30mA/≤10.5V |
| Current isolator output | |
| Output signal | 0-20mA、0-20mA、0-5V、1-5V、0-10V |
| Output load | 4-20mA, 0-20mA load resistance RL≤400Ω;
0-5V, 1-5V load resistance RL≥250KΩ, 0-10V load resistance RL≥500KΩ |
| Voltage isolator output | |
| Output signal | 0-20mA、0-20mA、0-5V、1-5V、0-10V |
| Output load | 4-20mA, 0-20mA load resistance RL≤400Ω;
0-5V, 1-5V, 0-10V load resistance RL≥20KΩ |
| Power supply | |
| Power supply | DC20-32V |
| Power consumption | Single Output Power: ≤0.8W; Dual Output Power: ≤1.0W |
| Other parameters | |
| Insulation resistance (between input / output / power supply) | ≥100MΩ (500VDC) |
| Dielectric strength (between input / output / power supply) | 2000Vrms (1 min, no spark) |
| Operating temperature | -10 ~ 50 °C (no condensation, no freezing) |
| Relative humidity | 25%～85%RH |
| Storage temperature | -10 ~ 60 °C (no condensation, no freezing) |
| Temperature drift | 0.0075%FS/℃ |
| Mounting style | 35mmDIN rail mounting |
| Dimensions | 13 * 108 * 121.2mm (W * H * D) |
| Transmission accuracy (20 °C) | 0.15%FS |
| Response time | ≤2ms |
| Weight | Approximately 130 g |
| Electromagnetic compatibility | In line with GB/T18268 industrial equipment application requirements (IEC 61326-1) |
| Field devices applicable | DC voltage / current source |
