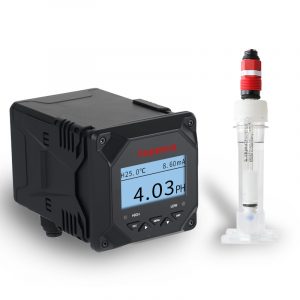

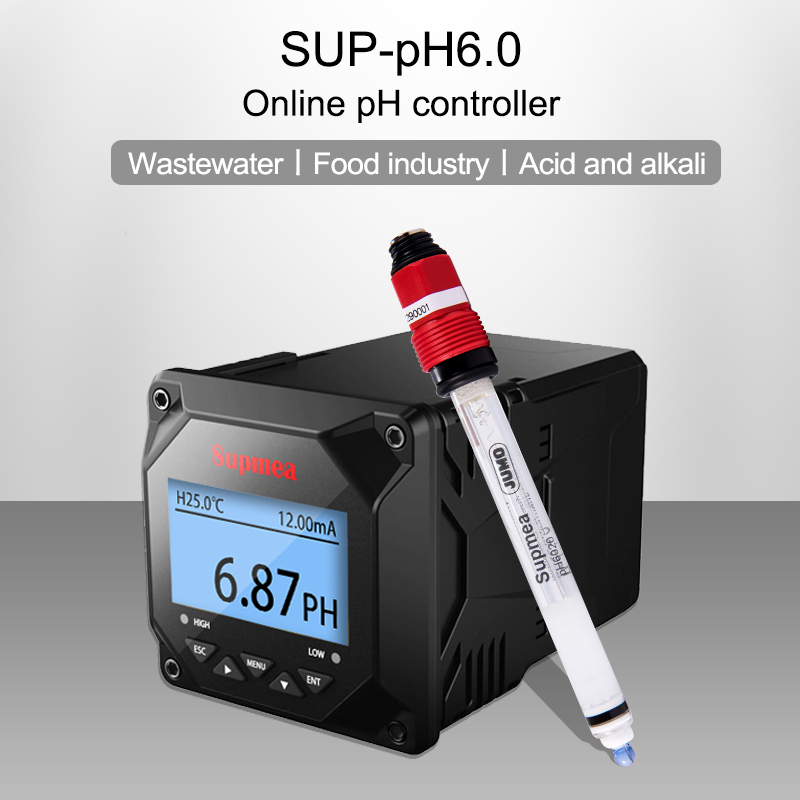

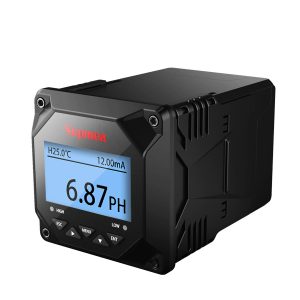

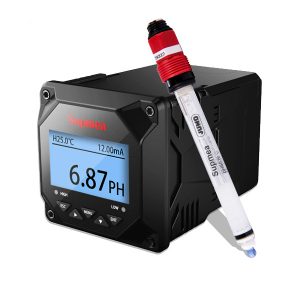

SUP-pH6.0 pH ORP meter
Category: pH/ORP meter
Applications: SUP-pH6.0 industrial pH meter is an online pH analyzer which applied in chemical industry metallurgy, environment protection, food, agriculture and so on. With 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc.
SUP-pH6.0 Online pH meter is a multivariable analyzer used for measuring/controlling the pH and ORP with different temperature. The function is switchable on the device itself. Depending on the measured variable, combination electrodes (e. g. pH sensors) or split versions (glass electrodes with a separate reference electrode) can be readily connected.
| Product | pH meter, pH controller |
| Model | SUP-pH6.0 |
| Measure range | pH: 0-14 pH, ±0.02 |
| ORP: -1000 ~1000mV, ±1mV | |
| Resolution | 0.01pH; 1mV |
| Stability | pH:≤0.02pH/24h; ORP: ≤3mV/24h |
| Measuring medium | Liquid |
| Input Resistance | ≥10~12Ω |
| Temp compensation | Manual/ Auto temperature compensation |
| Temperature Range | 0~100℃， NTC10K or PT1000 |
| Communication | RS485, Modbus-RTU |
| Signal output | 4-20mA, maximum loop 750Ω, 0.01%FS |
| Power supply | AC220V±10%, 50Hz |
| Relay output | 250V, 3A |
