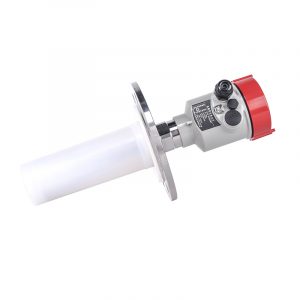

SUP-RD902T 26GHz Radar level meter
Category: Radar level meter
Applications: SUP-RD902T Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications – be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
SUP-RD902T Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications – be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
| Product | Radar level meter |
| Model | SUP-RD902T |
| Measure range | 0-20 meters |
| Application | Liquid |
| Process Connection | Thread, Flange |
| Medium Temperature | -40℃~130℃(Standard type), -40℃~250℃(High temp type) |
| Process Pressure | -0.1~2.0MPa |
| Accuracy | ±3mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Signal Output | 4-20mA |
| RS485/Modbus | |
| Power supply | DC(6~24V)/ Four-wire DC 24V / Two-wire |
