Category: Electromagetic flowmeter
Applications: Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, food processing, pharmaceuticals, etc. The compact type is easier for on site reading. Output signal can pulse,4-20mA or with RS485 communication.

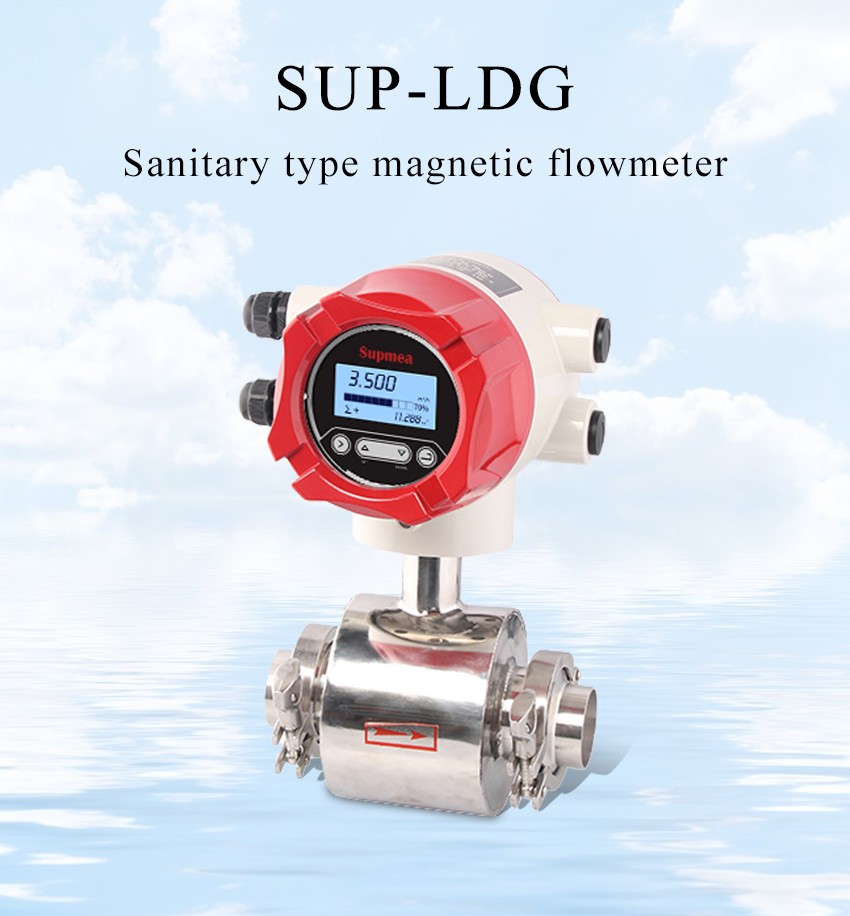

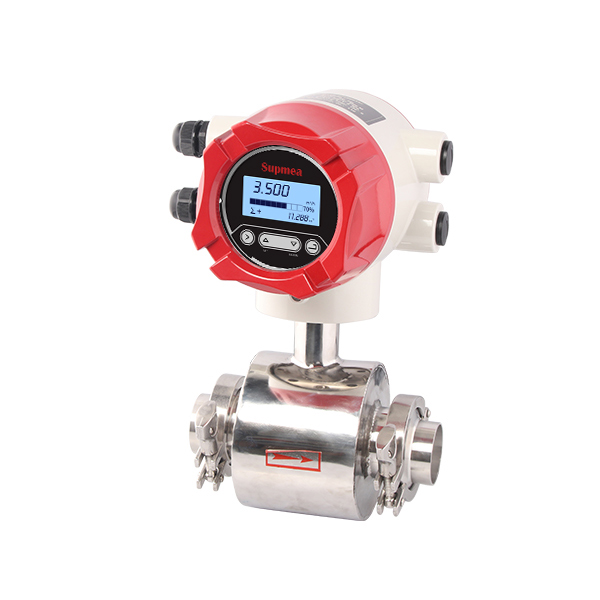

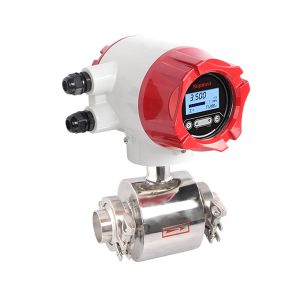

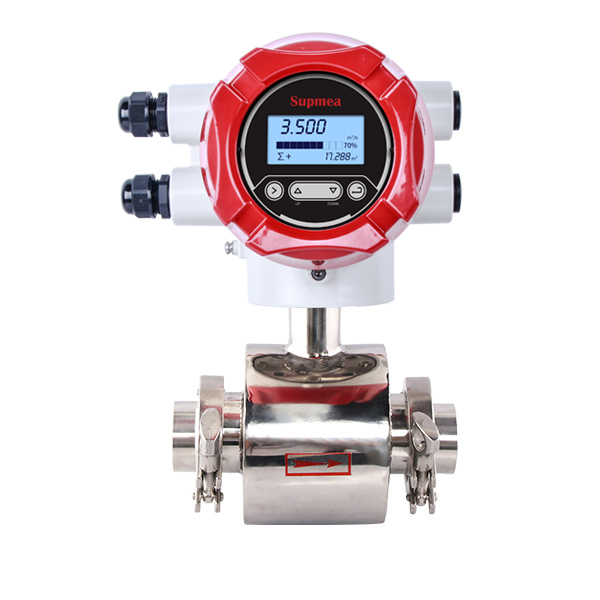

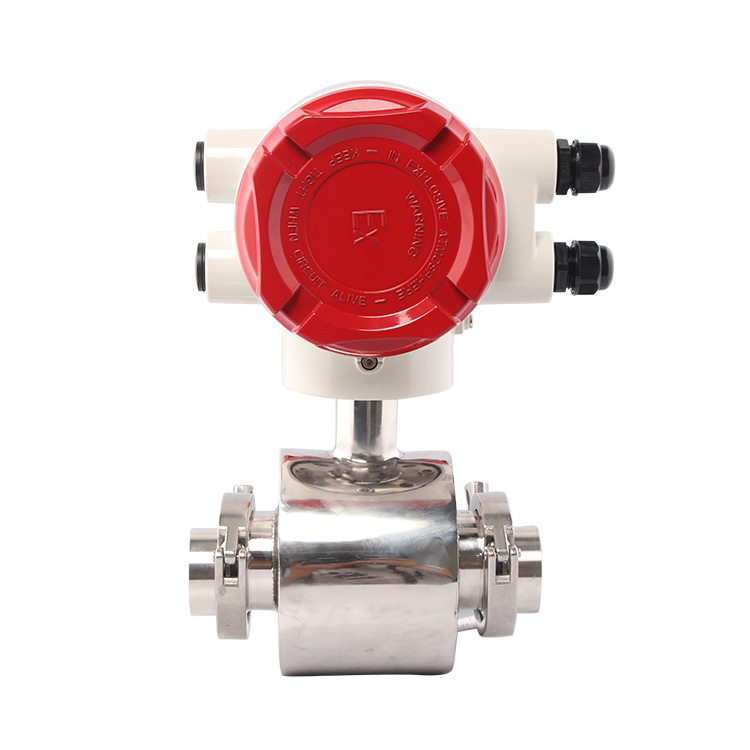

SUP-LDGS sanitary electromagnetic flowmeter is applicable for all food grade conductive liquids measure, such as drinking water, food processing, pharmaceutical industry and many others. Typical applications are monitoring accurate measurements in liquid, metering and custody transfer.
Electromagnetic flowmeters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as:
- Domestic water
- Industrial water
- Raw water
- Ground water
- Urban sewage
- Industrial wastewater
- The processed neutral pulp, pulp slurry, etc
| Compact type | Remote type | Sanitary type | Plug-in type | |

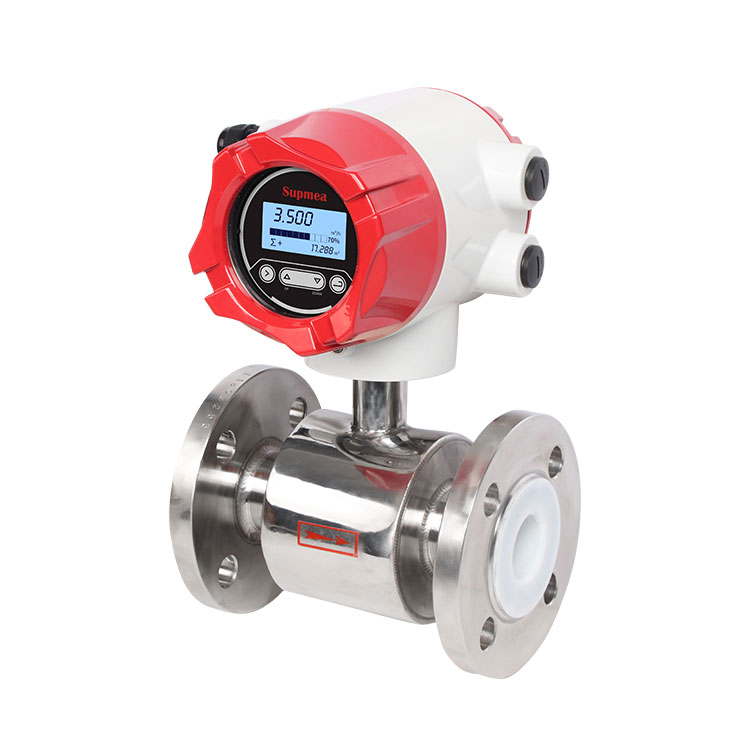

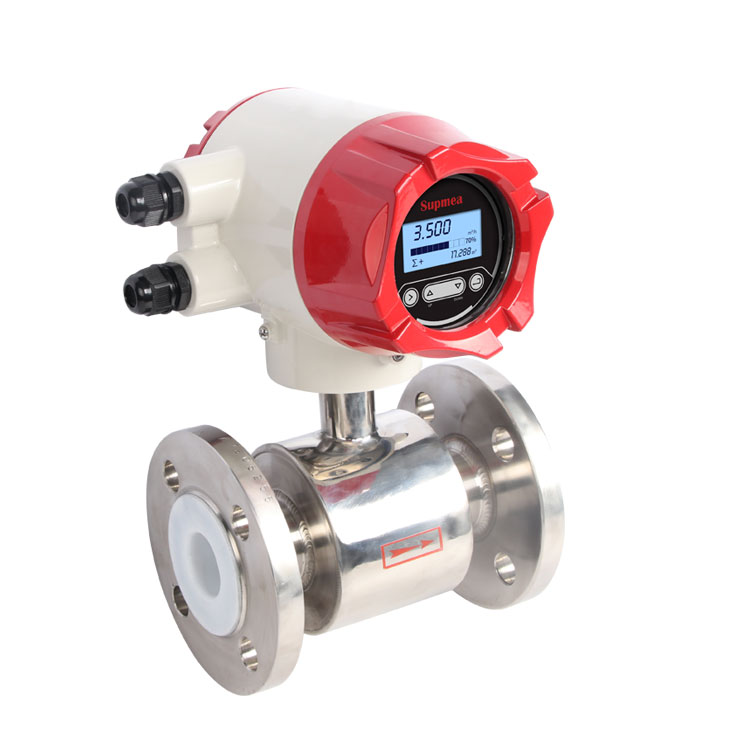

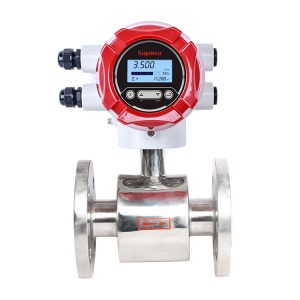

| Model: | SUP-LDG | SUP-LDGR | SUP-LDGS | SUP-LDGP |
| Media | Conductivity fluid | Conductivity fluid | Conductivity fluid | Conductivity fluid |
| Nominal diameter | DN10-DN2000 | DN100-DN1000 | DN10-DN100 | DN300-DN3000 |
| Nominal pressure | 4.0MPA;1.6MPA | 4.0MPA;1.6MPA | 4.0MPA;1.6MPA | 1.6MPA |
| Accuracy | ±0.5% | ±0.5% | ±0.5% | ±2.5% |
| Body material |
Carbon Steel; SS316L |
Carbon Steel; SS316L |
Carbon Steel; SS316L |
Carbon Steel; SS316L |
| Electrode Material |
316L,HB/HC, Ti,Ta, Tungsten carbide |
316L,HB/HC,Ti, Ta,Tungsten carbide |
316L,HB/HC,Ti, Ta,Tungsten carbide |
304,304L,316,316L, HC,HB,Ti |
| Signal output | 4-20mA,Pulse | 4-20mA,Pulse | 4-20mA,Pulse | 4-20mA,Pulse |
| Communication |
RS485;Hart; Profibus |
RS485;Hart; Profibus |
RS485;Hart; Profibus |
|
| Power supply | 220VAC;24VDC | 220VAC;24VDC | 220VAC;24VDC | 220VAC;24VDC |
| Ingress protection | IP65 | IP68 | IP65 | IP65,IP68 |
| Installation | Flange;Clamp | Flange;Clamp | Clamp | Flange,thread |
