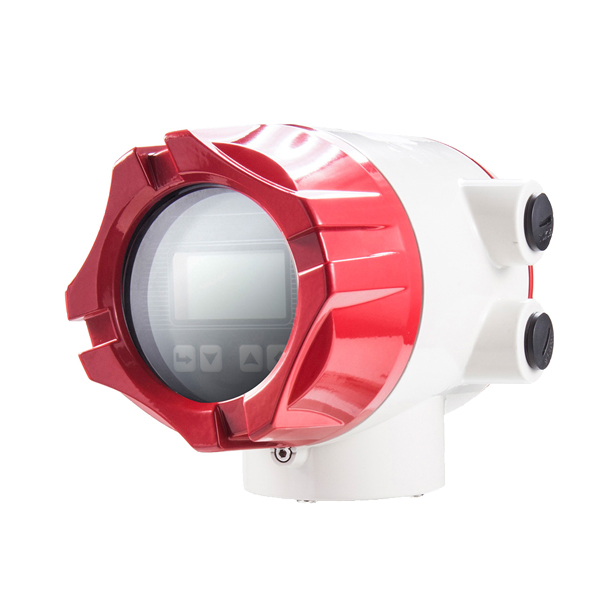

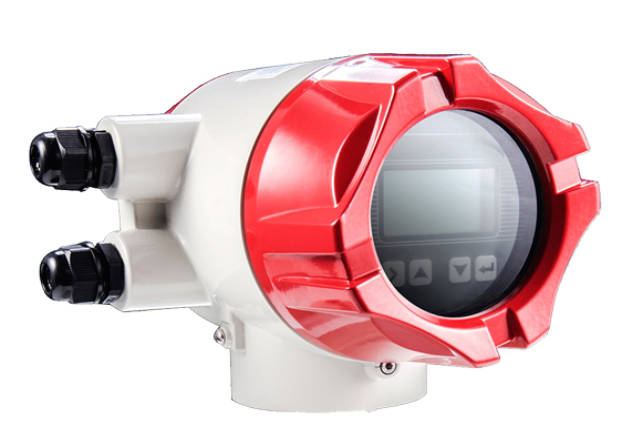

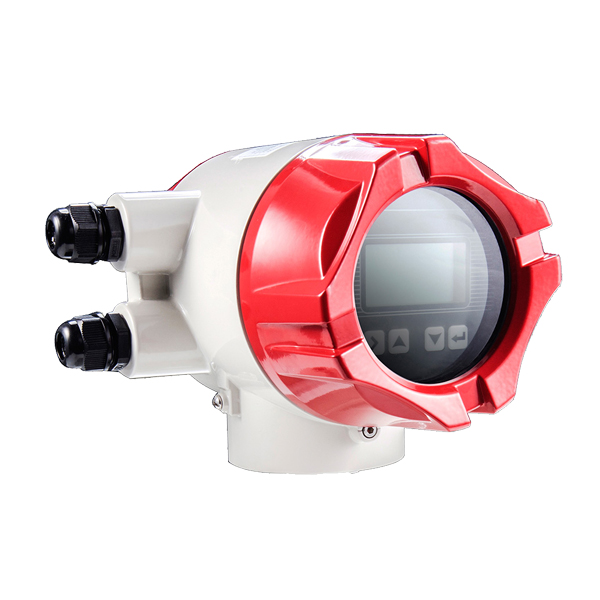

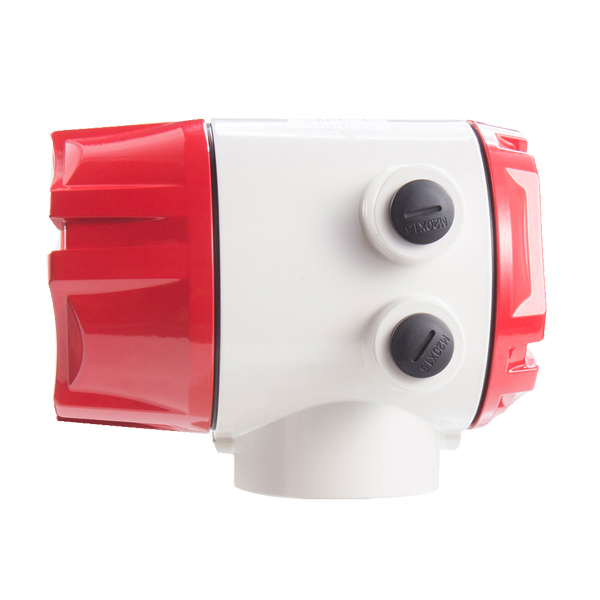

SUP-LDG-H Electromagnetic flowmeter Signal Converter
Category: Electromagetic flowmeter
Applications: Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The compact type is easier for on site reading. Output signal can pulse,4-20mA or with RS485 communication.

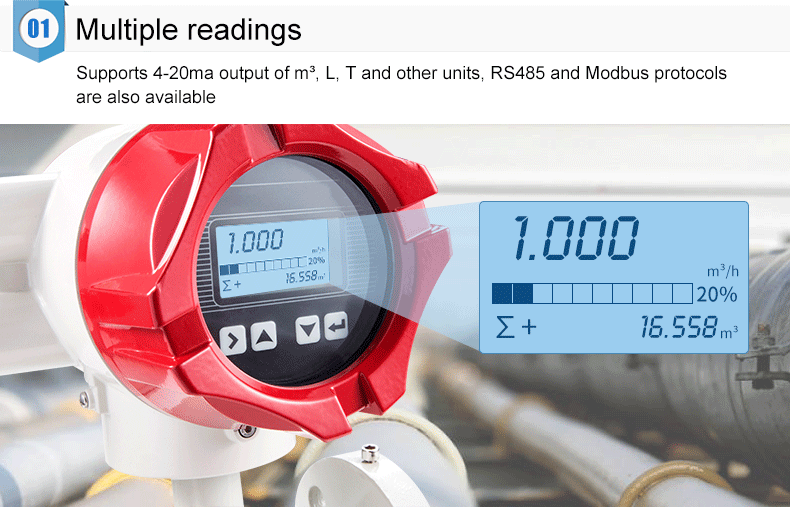

Supmea electromagnetic flowmeter Signal Converter can display both instantaneous and cumulative flow, and supports analog output, communication output and relay control functions.
| Measuring principle |
Faraday’s law of induction |
| Function | Instantaneous flow rate, flow velocity, mass flow (when the density is constant) |
| Modular structure | Measuring system is composed of a measuring sensor and a signal converter |
| Serial communication | RS485 |
| Output | Current (4-20 ma), pulse frequency, mode switch value |
| Function | Empty pipe identification, electrode pollution |
| Display user interface | |

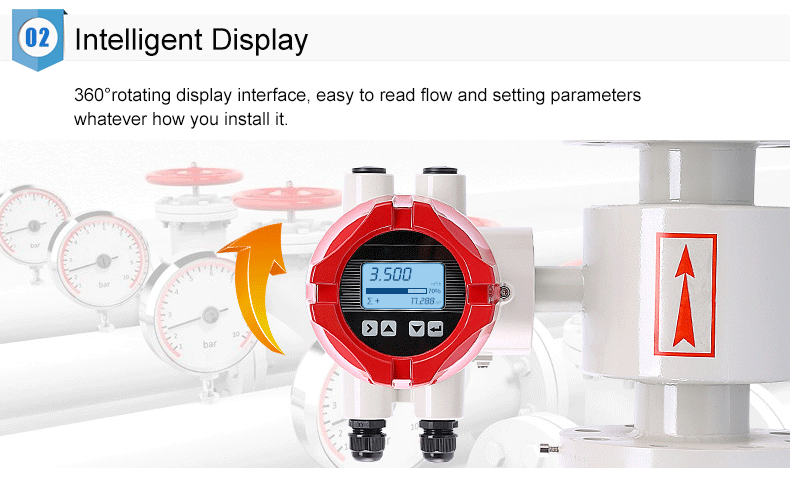

| Graphic display |
Monochrome liquid crystal display, white backlight; Size: 128 * 64 pixels |
| Display function | 2 measurements picture (measurements, status, etc.) |
| Language | English |
| Unit | Can choose units through configuration, see “6.4 configuration details” “1-1 flow rate unit”. |

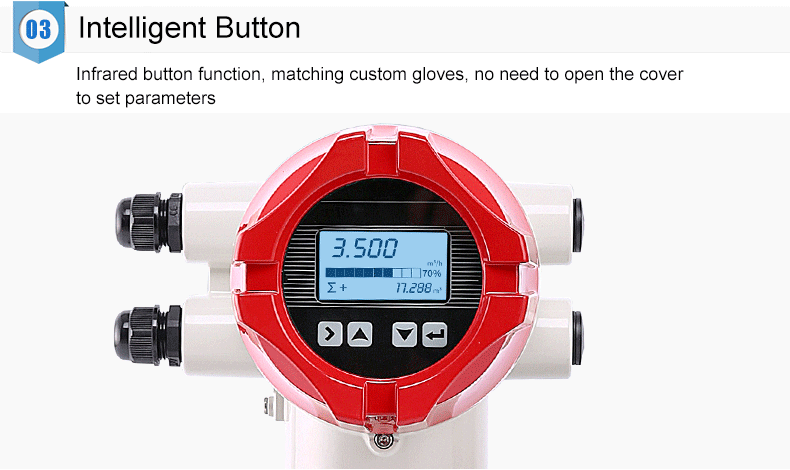

| Operation buttons | Four infrared touch key/mechanical |
