Category: Electromagetic flowmeter
Applications: Magnetic flowmeters operate under the principle of Faraday’s Law of Electromagnetic Induction to measure liquid velocity. Following Faraday’s Law, magnetic flowmeters measure the velocity of conductive liquids in pipes, such as water, acids, caustic, and slurries. In order of usage, magnetic flowmeter use in water/wastewater industry, chemical, food and beverage, power, pulp and paper, metals and mining, and pharmaceutical application.

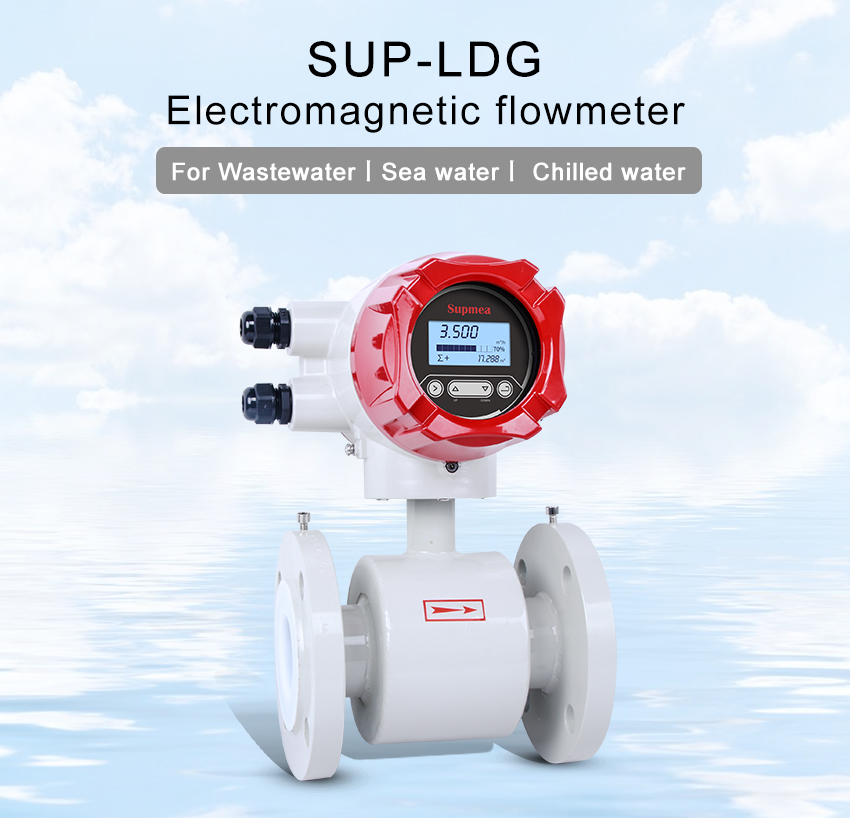

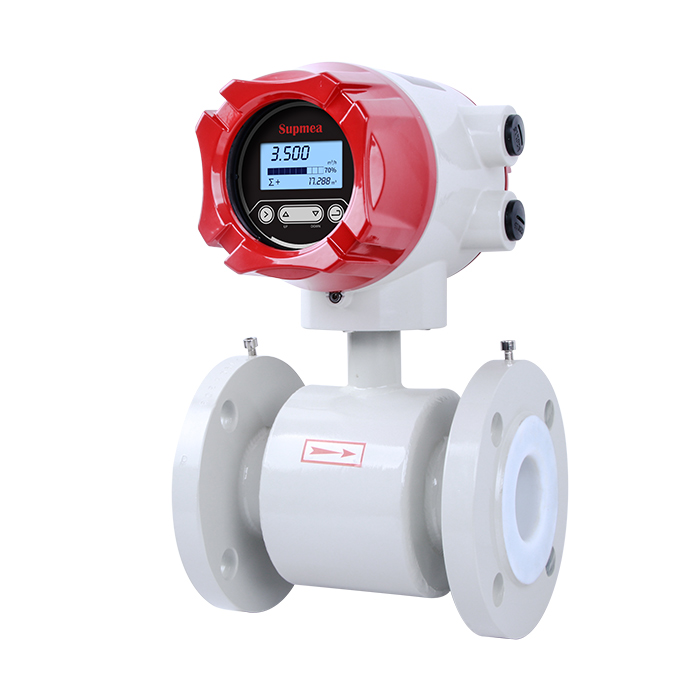

SUP-LDG electromagnetic flowmeter is applicable for all conductive liquids. Typical applications are monitoring accurate measurements in liquid, metering and custody transfer. Can display both instantaneous and cumulative flow, and supports analog output, communication output and relay control functions.
| Product | Electromagnetic flowmeter |
| Model | SUP-LDG |
| Diameter Nominal | DN15~DN1000 |
|
Nominal Pressure
|
DN10 – DN250, PN<1.6MPa |
| DN300 – DN1000, PN<1.0MPa | |
| DN1200 – DN2200, PN<0.6MPa | |
| Accuracy | ±0.5%，±2mm/s(flowrate<1m/s) |
| Repetitiveness | 0.2% |
| Liner material | PFA, F46, Neoprene, PTFE, FEP |
| Electrode material | Stainless steel SUS316, Hastelloy C, Titanium, |
| Tantalum, Platinum-iridium | |
| Medium Temperature | Integral type: -10℃~80℃ |
| Split type: -25℃~180℃ | |
| Ambient Temperature | -10℃~55℃ |
| Power supply | 100-240VAC，50/60Hz / 22VDC—26VDC |
| Electrical conductivity | Water 20μS/cm other medium 5μS/cm |

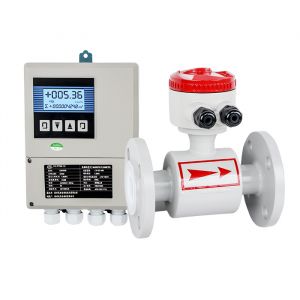

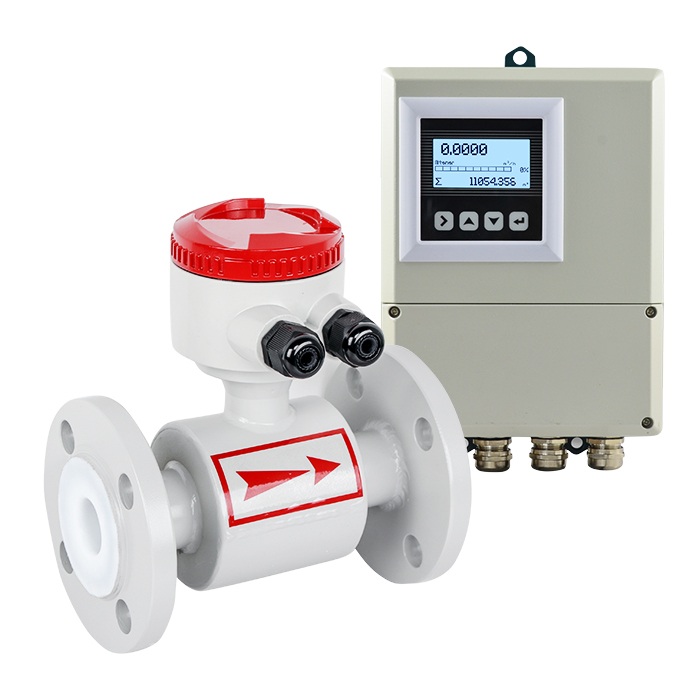

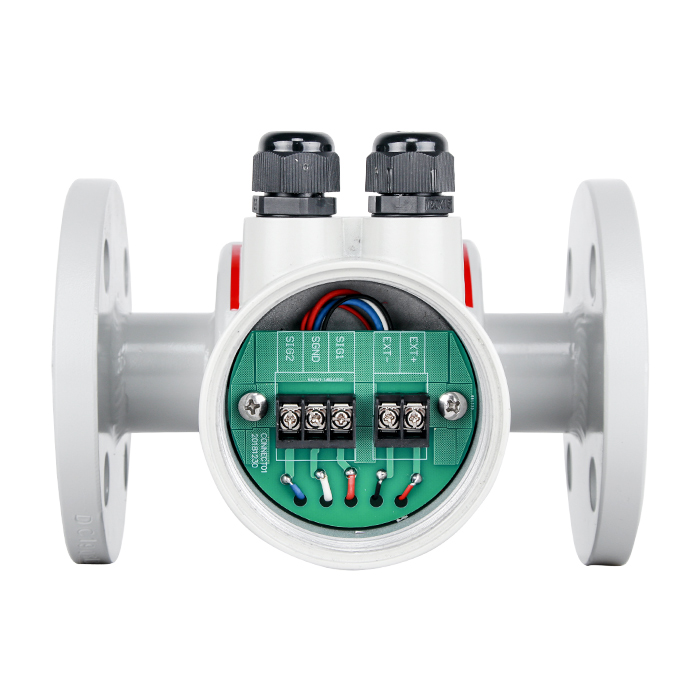

| Structure type | Tegral type, split type |
| Ingress protection | IP65, IP68(optional) |
| Product Standard | JB/T 9248-2015 |
